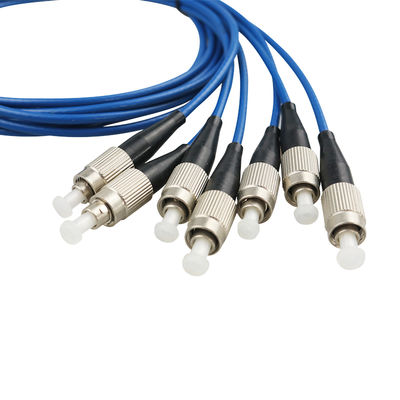

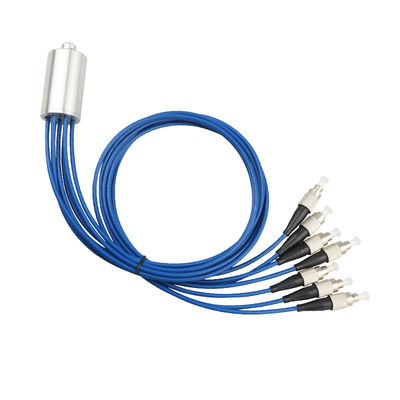

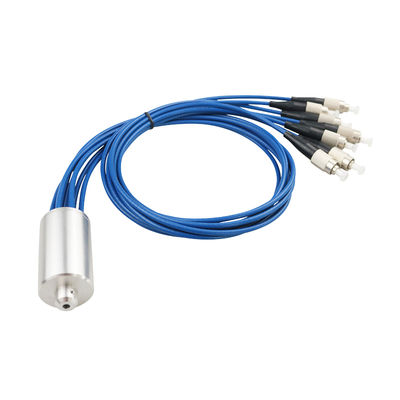

FC/PC-FC/PC Fiber Bundles MM Round to SX fan-out bundle cables
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Fiber type | Simplex and Duplex | Application | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector type | LC/UPC | Length | 3m/customized |
| Insertion loss | ≤0.3dB | Product name | Fiber Optic Patch Cord |
| Material | PVC/LSZH | Color | blue |
| Fber | SM MM PM |
製品の説明
Description
Simplex cable assemblies are offered with a variety of combinations. Connectors include SC, FC, ST and
LC. 3.0 mm, 2.0 mm, 1.6 mm, 1.2mm and 900μm simplex cables in PVC, OFNR, LSZH, OFNP jackets
and G.652D, G. 657A2 fiber types are available.
Features
*Low insertion loss & High return loss
*Connectors compliant with Telcordia GR-326
*Cable compliant with Telcordia GR-409
*Mechanical performance compliant with IEC 61754-4
*RoHS compliant - Riser, Plenum, and LSZH rated cables available
Applications
*Building interconnections (campus LAN)
*Connector end in optical distribution boxes and termination boxes
*Trunk lines direct to telecommunications closet
*Cross-connect in outdoor closet
*Distribution connect in central office ODF / MDF
*Fiber patch panels within communications closets
*Links between Internet electronic equipment (SFP module, Switch, OLT, ONU etc.), Cable TV optical
equipment (Transmitter, EDFA, Node, etc.) and fiber patch panels
Specifications
| Item | Parameter | |||
| Single Mode | Multi-Mode | |||
| PC | UPC | APC | PC | |
| Test wavelength | 1310/1550nm | 850/1300nm | ||
| Insertion loss | Typ. ≤0.15 dB, Max. ≤0.30 dB | |||
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | ≥35dB |
| Repeatability | ≤0.10 dB | |||
| Changeability | ≤0.20 dB | |||
| Durability (1000 Mating) | ≤0.20 dB | |||
| Operation temperature | -40 ~ +80℃ | |||
| Storage temperature | -40 ~ +85℃ | |||
| Connector end | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||
| Cable diameter | 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm | |||
| Fiber count | Simplex | |||
| Fiber type |
Single Mode: G. 652D, G. 655, G. 657A2, etc. Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125) |
|||
| Cable length | 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc. | |||
| Fiber brand | Corning, Sumitomo, Fujikura, YOFC, TFO | |||
| Fire resistant | IEC 60794-2-30 | |||
| Standards Compliant | ROHS, IEC, GR-326 | |||
Order Information
Connector End A - Connector End B,
Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length
Example:
SC/UPC-SC/APC,
LSZH, 3.0mm, Simplex, G.657A2, 5 meters
Indoor patch cord
