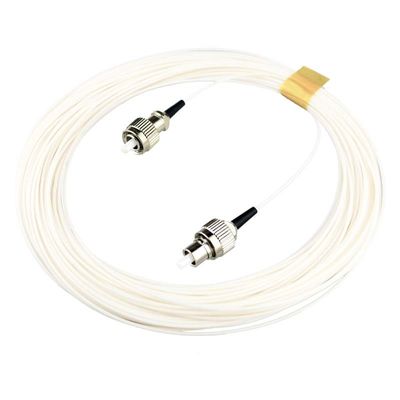

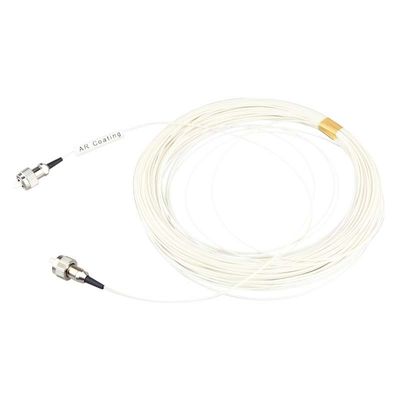

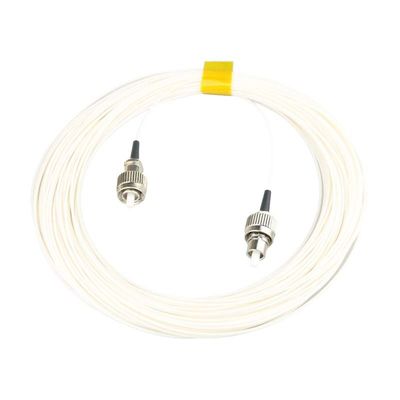

Anti-reflective coating patch cord jumper 405-532 nm Customize any wavelength

起源の場所	中国
ブランド名	YOGEL
証明	ISO9000
最小注文数量	1
価格	negotiate
パッケージの詳細	カートンボックス
支払条件	L/C、D/A、T/T、Western Union、MoneyGram
供給の能力	月に100個

試供品およびクーポンのための私に連絡しなさい。

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

商品の詳細

挿入損失	≤0.3dB	繊維のジャケット素材	PVC/LSZH/OFNP
ケーブルの長さ	1メートル（オプション）	コネクタタイプ	FC/APC（Senko、SGオプション）
繊維径	9/125μm	動作温度	-40℃〜 +85℃
保証	1年	狭いキー	2.0mm
ファイバーの種類	シングルモード	波長	405 ～ 532 nm 任意の波長をカスタマイズ
繊維数	シンプレックス/デュプレックス	ファイバージャケットの直径	2.0/3.0mm

メッセージ

製品の説明

Anti-reflective coating patch cord jumper 405-532 nm Customize any wavelength

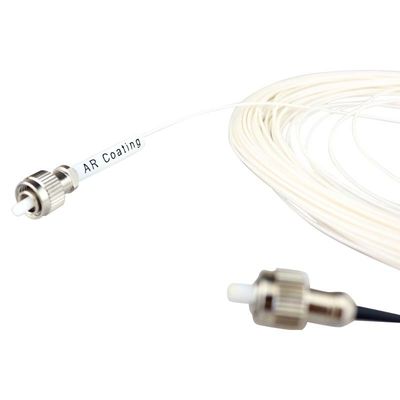

We offer fiber optic patch cords with an FC/PC or FC/APC connector coated with a permeation enhancement film on one end and an uncoated FC/PC or FC/APC

connector on the other end. Transparency enhancement coatings are designed to reduce the reflection ratio of

when launching a beam from a fiber into free space or coupling a free space beam into a fiber. Depending on the patch cord, the average reflectance of the coated connector is less than 1%, less than 0.75%

or less than 0.5% over the transmissive film frequency range (click on the transmissive film coated reflectance graph below for more information). Each patch cable is supplied with Ø3mm Kevlar reinforced

split tubing. Patchcords are grouped below according to the optimal performance range, with bare fiber overlapping the specified operating wavelength range of the permeation enhancement film.

Feature:

Low insertion loss
High repeatability and high stability
MPO/MTP polarity can be arbitrarily matched
Complies with GR326 or IEC61300-2 standards

Application:

Fiber-to-free-space coupling

When light is incident from a fiber into free space, such as when using our fiber collimators and FiberPort collimator/couplers, the return loss

(loss of signal reflecting back to the light source at the glass-air interface at the end of the fiber) will be more severe than the equivalent fiber-to-fiber coupling

method. The return loss on FC/PC connectors can be reduced by ~8 to 10 dB by coating the fiber ends with a permeation enhancing film

and by ~2 to 5 dB on FC/APC connectors. For example, in testing, a typical return loss for a

patch cord with an uncoated connector was ~15 dB (3.16%), while the same patch cord with a permeation-enhanced connector had a return loss of ~24 dB

(0.40%). Transmission enhancement connectors also improve the transmittance of free-space beams when coupled into optical fibers. For more test data,

see the Experimental Observations tab.

Specification:

Item	AR Coating connector	No coating connector	AR Coating
P1–305AR–2	FC/PC	FC/PC (30126C3)	<0.5%
			for 500 – 800 nm
P5–305AR–2	FC/PC	FC/APC(30126 A3)
P4–305AR–2	FC/APC(30126 A3)	FC/PC (30126C3)
P3–305AR–2	FC/APC(30126 A3)	FC/APC(30126 A3)
